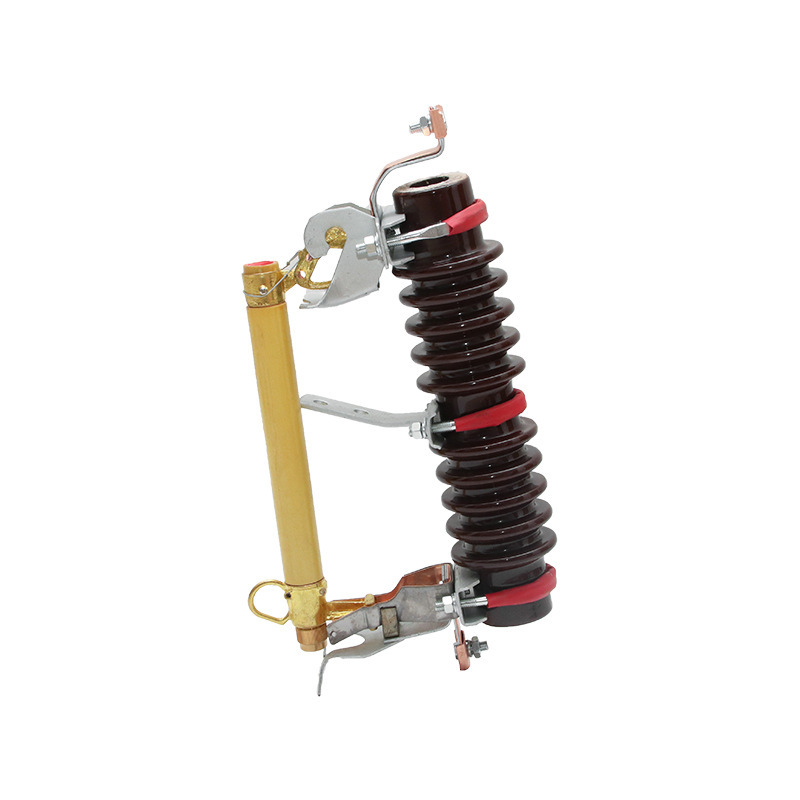

(H)RW11-12(F) Outdoor high voltage AC drop fuse

The outdoor high-voltage AC drop-out fuse, also known as a drop-out fuse or high-voltage fuse cutout, is a protective device specifically designed for outdoor electrical distribution systems to safeguard against overcurrents and short circuits. This fuse operates by disconnecting the circuit when excessive current flows, effectively interrupting the current flow and protecting downstream equipment from damage.
The design of the drop-out fuse includes a fuse element housed within a robust insulating housing, typically made of porcelain or polymer materials. This housing is designed to withstand environmental factors such as moisture, UV radiation, and temperature fluctuations, ensuring reliable performance in outdoor settings. The fuse element is constructed to melt or "drop out" under fault conditions, creating an arc that extinguishes quickly due to the expulsion effect.
Drop-out fuses are commonly used in overhead high-voltage transmission and distribution lines, as well as in substations and industrial facilities. Their outdoor design and high-voltage rating make them ideal for applications where reliable overcurrent protection is essential. These fuses play a crucial role in maintaining the safety and reliability of electrical power systems by preventing damage to equipment and small downtime during fault conditions.
