Are LV Panels Failing Frequent Trips

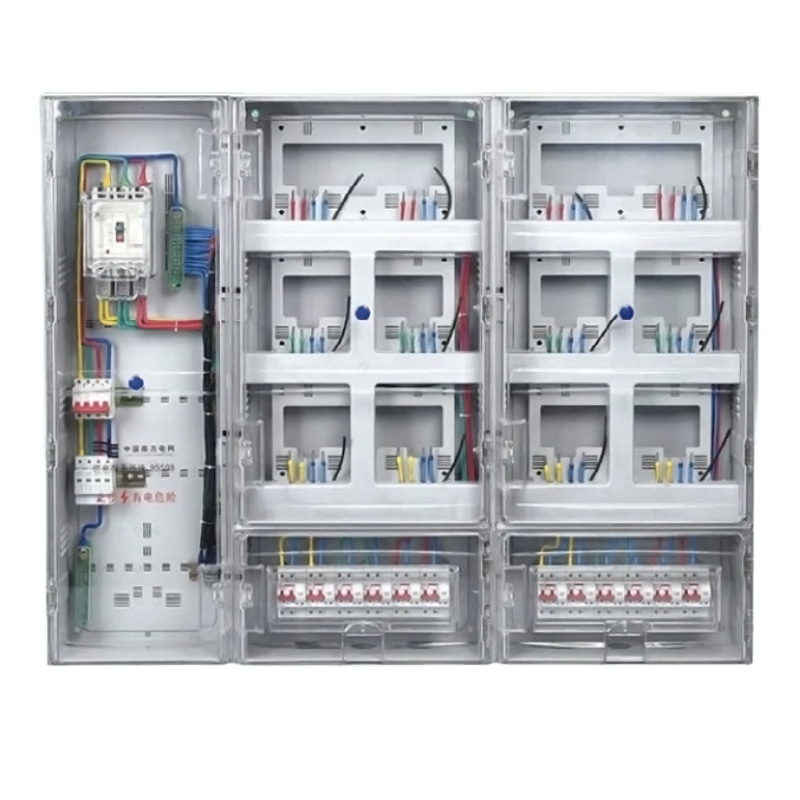

Frequent tripping of circuit breakers in an LV Switchgear Panel is a concern that many maintenance teams and facility managers encounter. Sudden power interruptions not only disrupt operations but also raise questions about electrical design, load management, and component reliability. Whether you are sourcing support from a Low Voltage Switchgear Manufacturer or troubleshooting in-house, determining why panels trip repeatedly is essential for preventing downtime and ensuring safety.

Users often report that breakers seem to trip without an obvious cause — sometimes during normal load conditions or shortly after energizing a new circuit. Understanding common triggers, diagnostic methods, and corrective actions helps mitigate these interruptions.

Breaker Trips Due to Overload Conditions

One of the more common causes of frequent breaker trips is circuit overload. Every circuit and associated breaker is rated for a specific current limit based on design and safety factors. When the actual electrical demand exceeds this limit — such as when multiple heavy loads operate simultaneously — the protective device will trip to prevent overheating and potential damage. In switchgear systems, this protection mechanism is fundamental and intentional.

For example, if a panel feeder supplies several large motors or heater circuits without proper load distribution, total current can exceed the breaker’s capacity. Balancing loads across phases and using correctly sized breakers reduces nuisance trips and improves overall system stability.

Short Circuits and Ground Faults

Short circuits and ground faults are among the more abrupt and severe causes of breaker tripping. A short circuit occurs when a live conductor contacts another conductor or ground path, resulting in an extremely high current surge. Protection devices detect this surge and instantly disconnect the circuit to safeguard equipment and personnel. These faults may arise from damaged insulation, improper connections, or insulation breakdown.

Ground faults, where an unintended connection occurs between a live conductor and the equipment enclosure or earth, also trigger protective devices. Proper insulation resistance testing during routine maintenance can help identify early signs of insulation degradation that contribute to these faults.

Protection Setting and Coordination Issues

Another common root of frequent trips lies in protection settings and coordination of the electrical distribution system. Circuit breakers and protective relays are configured to operate based on predetermined current thresholds and time delays. If these settings are overly sensitive or poorly coordinated with upstream or downstream devices, breakers may trip prematurely or inappropriately during normal transient conditions.

Selective coordination ensures that only the device closest to the fault clears the fault current, whereas other parts of the distribution system remain unaffected. If coordination is absent, a minor downstream fault may cause multiple breakers, including upstream devices, to open, causing to larger outages and unnecessary service interruptions.

Loose Connections and Contact Wear

Electrical connections inside an LV switchgear panel must be secure and well-torqued. Loose terminals or corroded contacts can cause intermittent increases in resistance, causing to localized heating and voltage fluctuations. These conditions may trigger breaker trips even without an actual overload or fault. In practical scenarios, technicians often find that tightening connections and replacing degraded contactors reduces both heat and nuisance trips.

Similarly, contact wear in breakers or auxiliary components can degrade performance over time. Repeated switching operations, arcing, and mechanical fatigue contribute to contact erosion, making devices more prone to trip under conditions they should otherwise tolerate. Scheduling periodic inspections and replacing worn parts before failure helps maintain consistent operation.

Environmental and Installation Factors

Environmental conditions — such as high humidity, dust ingress, or corrosive atmospheres — can contribute indirectly to frequent tripping. Moisture and contaminants accelerate insulation deterioration and corrosion of terminals and busbars, potentially causing intermittent faults and faults that mimic overload conditions. Selecting switchgear with appropriate protection ratings and conducting regular cleaning and humidity control reduces these risks.

Moreover, installation errors — such as incorrect phasing, poor wiring practices, or unbalanced load distribution — often manifest as circuit instability and repeated breaker operations soon after commissioning. Ensuring professional installation and complete functional testing during commissioning helps catch these issues early.

Practical Steps for Troubleshooting Trips

For field teams tasked with reducing frequent trips in LV panels, a systematic approach yields the better results:

Conduct Load Analysis: Verify actual loads versus rated capacity to detect overload conditions.

Perform Insulation Tests: Use an insulation resistance tester to identify weak circuits before faults occur.

Inspect Connections: Torque and clean all terminals and busbars to eliminate resistance-induced heat.

Review Protection Settings: Adjust breaker thresholds and coordination schemes based on electrical system characteristics.

Monitor Conditions: Use thermal imaging and trending to detect potential issues before they escalate.

At Qinghang Electric Co., Ltd., we advise regular maintenance planning and clear documentation of load changes as part of a proactive reliability strategy.

Repeating breaker trips in an LV switchgear panel often point to underlying electrical or environmental issues rather than random failure. By understanding overloads, short circuits, protection coordination, and installation better practices, teams can reduce unnecessary interruptions and improve overall reliability. Consulting with an experienced low voltage switchgear manufacturer during both design and ongoing maintenance brings additional insights that help avoid frequent trips and maintain electrical safety.
